Re: Diagrams

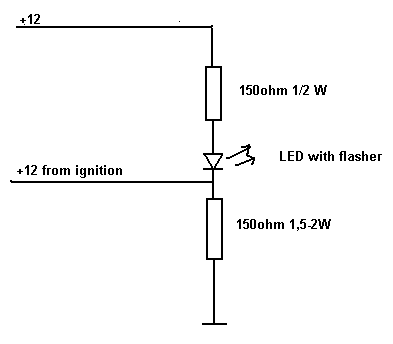

You don't have to use relay all you need is two resistors. But you are right
about flash rates and types of LED or lamp.
Regards
Andrzej
Julie Macfarlane napisał(a):
> Yes there are. But to have it come on when the ignition is off requires a
> relay of sorts. The 555 timer allows you to set the flash rate as you want,
> and select any type of lamp or led you want.
>
> > -----Original Message-----
> > From: Andrzej M. [mailto:scirocco@topnet.pl]
> > Sent: Thursday, March 23, 2000 5:28 PM
> > To: Julie Macfarlane
> > Subject: Re: Diagrams
> >
> >
> > Hi Julie,
> >
> > Uou don't have to buy so many parts to biuld LED flasher. There
> > are LED's with
> > flasher biuld in and all you need is such LED and resistor 330ohm 1/2W.
> >
> > That's all
> >
> > Regards
> > Andrzej
> >
> > --
> >
> > http://scirocco.supermedia.pl/
> >
--
